Unitas Exemplar		AOSZX-1.2HP	AOSZX-1.5HP	AOSZX-2HP	AOSZX-3HP	AOSZX-4HP	AOSZX-5HP
Condensata aeris exitus genus		Aer latus exitus
Evanescente Temperature / Refrigerant		R404A
Virtus (V-Ph-Hz)		220~ 240/1/50
Compressor	Type	volumen compressor
	Capacitas(P)	1.2	1.5	2	3	4	5
	Exemplar	XR22B-B1-101	XR28B-B1-101	XR38B-B1-101	XR52B-B1-101	XR72B-B1-101	XR91B-B1-101
Condenser ferrum ac motricium parametri	Brand	Orientisisisis
	Numerus	1	1	1	1	1	2
	Potentia (W *	60	60	60	130	130	130
	Fanspecifications	480X153	480X153	480X153	500X148	500X148	500X148
	Volumen aeris (m³/h)	3500	3500	3500	5000	5000	5000X2
Specification of condenser coppe		Filum internum
Condensatio area (m)		11	11	19	30	40	50
Condenser tubus aeris		φ9(25X21.65)	φ9(25X21.65)	φ7(25X21.65)	φ7(25X21.65)	φ9(25X21.65)	φ7(25X21.65)
Alveus volume（L）		3	3	3	5	5	8
Specificatio valvularum globi et fistulae aeris conflati		6 12 Threaded nexum portum			10 16 Threaded nexum portum		12 19 sequela nexum portum
Liquid Line Solenoid Valve
Visus Vitri
Arida-Type Filter
Notam valvae globi		DUN AN
Voluminis repono frigus commendatur pro repono caliditate frigidarum 0~-18 C(m ³)		10~15	10~15	15~20	20~50	40~60	50~100
Facultatem refrigerandum	Evaporatio Temperature	Conditiones test: Revertere aeris temperiem 20 , gradum subfrigidationis 0K; Condensatio temperatus 40
	-30℃	1013	1175	1577	2245	3146	3839
	-25℃	1282	1486	1995	2840	3981	4857
	-15℃	1974	2288	3071	4374	6129	7477
	-10℃	2411	2796	3752	5342	7488	9136
	-5℃	2924	3390	4550	6478	9081	11078
	0℃	3526	4088	5486	7811	10950	13358
	10℃	5079	5890	7903	11253	15774	19243
Product dimensiones: longitudo X latitudo X altitudo (mm)		1000×440×575	1000×440×575	1000×440×575	1000×440×825	1000×440×825	1000×440×1225
Packaging dimensiones: longitudo X latitudo X altitudo (mm)		1120x450x695	1120x450x695	1120x450x695	1120x450x955	1120x450x955	1120x450x1360
Installation longitudo X latitudo (mm)		725×410	725×410	725×410	725×410	725×410	725×410
sonitus dB(A)		49.5	49.5	49.5	51	51	53
Net pondus (kg)		48	48	51	71	75	90
Crassum pondus (kg)		55	55	58	78	82	97
Throttling fabrica		Scelerisque expansion valvae (user provisum)
Suadeo utens ad scelerisque expansion valvae exemplum		TES2 2#	TES2 2#	TES2 3#	TES2 4#	TES2 5#	TGES6
Commendatur aer frigidior Thracam exemplum		HS401AD02.5	HS401AD02.5	HS401AD02.5	HS401AD03.4	HS402AD04.2	HS402AD06.0
Nota: Ad effectum unitatis institutionis refrigerandum curare, commendatur uti fistulae aeris cum specificationibus non minoribus quam aeris frigidioris. Diameter variabilis tibiae aeneae adhiberi potest, cum ad unitatem densationem applicandam

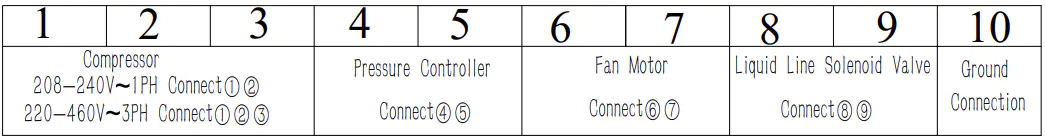

Wiring tabula

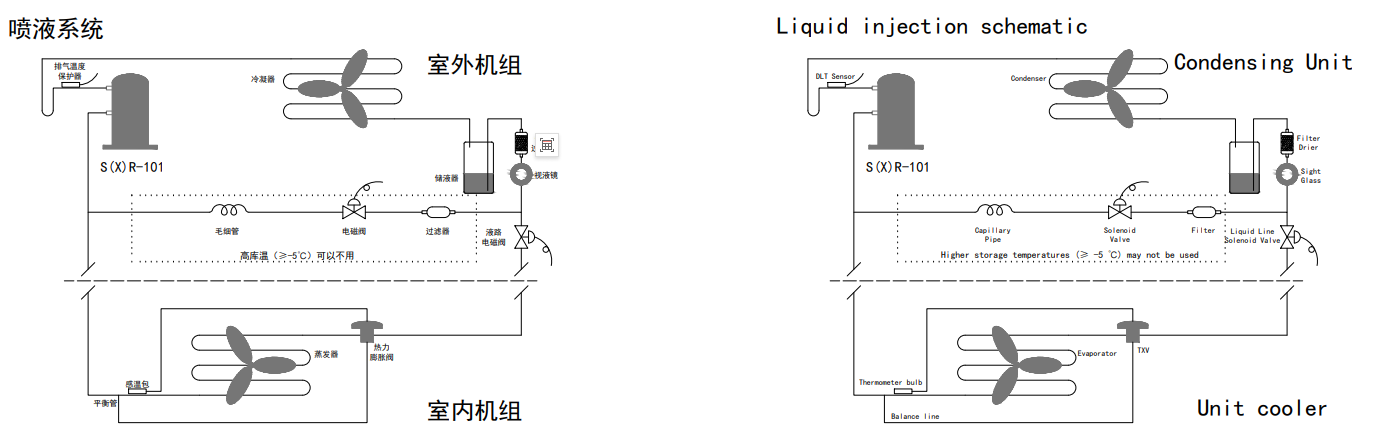

Schematic Diagram Refrigeration et Congelationis System

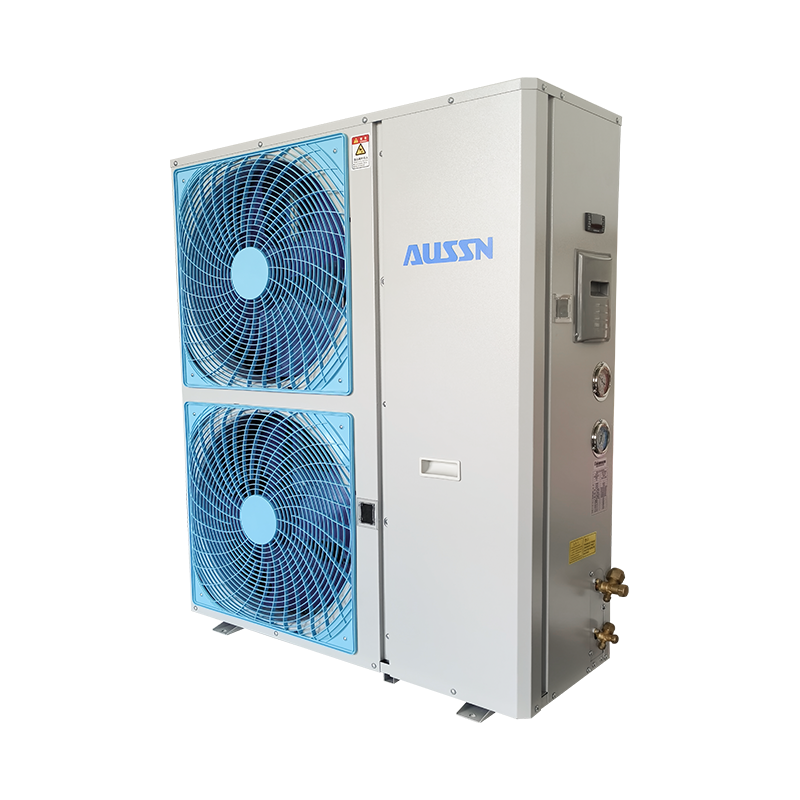

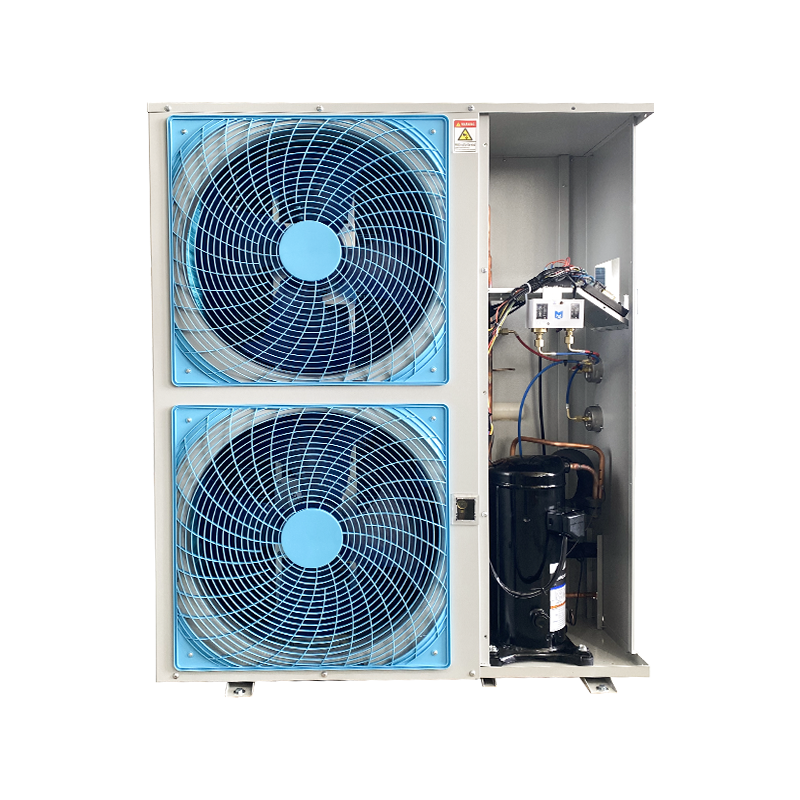

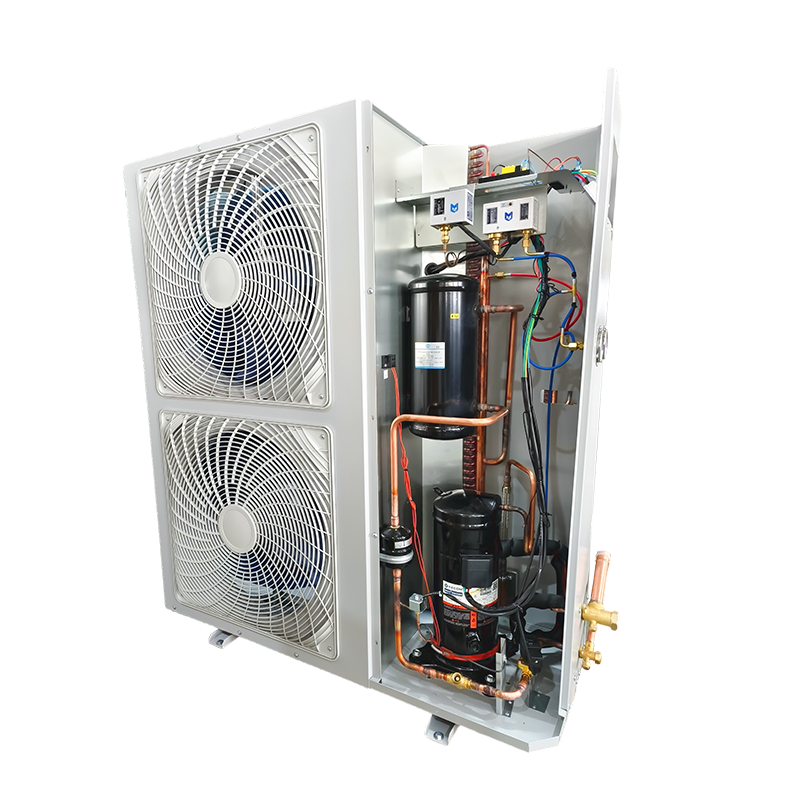

Unitas Exemplar		AOSZXV-1.2HP	AOSZXV-1.5HP	AOSZXV-2HP	AOSZXV-3HP	AOSZXV-4HP	AOSZXV-5HP	AOSZXV-6H	AOSZXV-8HP	AOSZXV-10HP	AOSZXV-8HP	AOSZXV-10HP	AOSZXV-12HP	AOSZXV-15HP	AOSZXV-20HP
Condensatum aeris exitus type		Partem aeris exitum									Top aerem exitu
Evanescente Temperature / Refrigerant		-40℃~0℃/R404A
Virtus (V-Ph-Hz)		380~ 420/3/50 460/3/60													380/3/60
Compressor	Type	volumen compressor
	Capacitas(P)	1.2	1.5	2	3	4	5	6	8	10	8	10	12	15	20
	Exemplar	XFV09B-A1-181	XFV10B-A1-181	XFV15B-A1-181	XFV20B-A1-181	XFV28B-A1-181	XFV35B-A1-181	XFV42B-A1-181	XFV51B-A1-181	XFV72B-A1-181	XFV51B-A1-181	XFV72B-A1-181	XFV80B-A1-181	XFV100B-A1-181	XFV120B-A1-181
Condenser ferrum et motricium parametri	Brand	Orientisisisis									Haile
	Numerus	1	1	1	1	1	2	2	2	2	2	2	2	2	2
	Virtus (W)	60	60	60	130	130	130	130	130	130	230	420W	420W	550W	780W
	Fanspecifications	480×153	480×153	480×153	500×148	500×148	500×148	500×148	500×148	500×148	450	500	500	550	600
	Volumen aeris (m³/h)	3500	3500	3500	5000	5000	5000×2	5000×2	5000×2	5000×2	4800×2	6550×2	6550×2	8600×2	11000×2
Specification of condenser coppe		Filum internum
Condensatio area (m)		11	11	19	30	40	50	60	80	100	80	100	120	150	200
Condenser tubus aeris		φ9(25X21.65)	φ9(25×21.65)	φ7(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ9(25X×21.65)	φ7(21×18.19)	φ9(21×18.19)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)
Alveus volumen (L)		3	3	3	5	5	8	8	10	10	10	10	12	15	20
Specificatio valvularum globi et fistulae aeris conflati		6 12 Threaded nexum portum			10 16 Threaded nexum portum		12 19 sequela nexum portum		16 28 Welding iunctio port		16 28 Welding iunctio port		19 35 Welding iunctio port		19 42 Welding connection
Commendatur frigus repono volumen ad frigus repono temperatura extensionem de 0~-18 C(m³)		10~15	10~15	15~20	20~50	40~60	50~100	60~ 120	80~ 140	100~150	80~ 140	100~150	120~200	150~300	200~400
Facultatem refrigerandum(W)	Evaporatio in Temperatura	Test conditionibus: Redi aeris temperies 20℃, subcooling gradus OK; Condensatio temperatus 40℃
	-40℃	621	726	1018	1414	1916	2419	2890	3569	4963	3569	4963	5655	6911	8551
	-30℃	1011	1182	1658	2302	3121	3939	4706	5811	8083	5811	8083	9208	11255	13925
	-20℃	1575	1841	2583	3587	4862	6137	7333	9055	12594	9055	12594	14347	17535	21696
	-10℃	2339	2735	3836	5327	7221	9115	10891	13448	18704	13448	18704	21308	26044	32223
	0℃	3295	3851	5402	7502	10170	12837	15338	18939	26341	18939	26341	30009	36678	45380
Productum rationem longitudinis width×height (mm)		1000×440×575	1000×440×575	1000×440×575	1000×440×825	1000×440×825	1000×440×1225	1000×440×1225	1230×490×1350	1230×490×1350	1380×764× 1022	1344×764×922	1444×764× 1022	1444×894×1122	1644× 899× 1222
Productum rationem longitudinis width×height (mm)		1120x450x695	1120×450×695	1120×450×695	1120×450×955	1120×450×955	1120×450×1360	1120×450×1360	1350×490×1510	1350×490×1510	1580×880×1180	1530×880×1090	1645×900× 1170	1645× 1015× 1290	1830×1200×1390
Packaging dimensiones: length×width×height(mm)		725×410	725×410	725×410	725×410	725×410	725×410	725×410	690×450	690×450	906×725	870×725	970×755	970×855	970×860
sonitus dB(A)		49.5	49.5	49.5	51	51	53	53	56	56	56	56	59	63	65
Net pondus (kg)		48	48	51	71	75	90	99	122	129	/	/	/	/	/
Crassum pondus (kg)		55	55	58	78	82	97	106	130	137	/	/	/	/	/
throttling fabrica		Scelerisque expansion valvae (user provisum)
Recipe sceleris expansionem valvam exemplari usere		TES24#	TES24#	TES24#	TES26#	TES26#	TGES6	TGES6	TGES9	TGES11	TGES9	TGES11	TGES13	TGES13	TGES13
Commendatur aer frigidior Thracam exemplum		HS401AD02.5	HS401AD02.5	HS401AD02.5	HS401AD03.4	HS402AD04.2	HS402AD06.0	HS402AD06.6	HS403AD09.7	HS404AD11.9	HS403AD09.7	HS404AD11.9	HS404AD13.5	HS504AD16.5	HS504AD20.8
Nota: Ut refrigerationem unitatis institutionis effectum conservet, commendatur uti fistulae aeris cum specificationibus non minoribus quam aeris frigidioris. Diameter variabilis tibiae aeneae adhiberi potest cum densante unitate connectens!

Unitas Exemplar		AOSZXL-1.2HP	AOSZXL-1.5HP	AOSZXL-2HP	AOSZXL-3HP	AOSZXL-4HP	AOSZXL-5HP	AOSZXL-6H	AOSZXL-8HP	AOSZXL-10HP	AOSZXL-8HP	AOSZXL-10HP	AOSZXL-12HP	AOSZXL-15HP	AOSZXL-20HP
Condensatum aeris exitus type		Aer latus exitus									Top aeris exitum
Evanescente Temperature / Refrigerant		-40℃~-5℃/R404A
Virtus (V-Ph-Hz)		380~ 420/3/50													380/3/60
Compressor	Type	Scrollcompressor
	Capacitas(P)	1.2	1.5	2	3	4	5	6	8	10	8	10	12	15	20
	Exemplar	XFL09B-A1-105	XFL10B-A1-105	XFL15B-A1-105	XFL20B-A1-105	XFL28B-A1-105	XFL35B-A1-105	XFL42B-A1-105	XFL51B-A1-105	XFL72B-A1-105	XFL51B-A1-105	XFL72B-A1-105	XFL80B-A1-105	XFL100B-A1-105	XFL120B-A1-105
Condenser ferrum et motricium parametri	Brand	Orientisisisis									Haile
	Numerus	1	1	1	1	1	2	2	2	2	2	2	2	2	2
	Virtus (W)	60	60	60	130	130	130	130	130	130	230	420	420	550	780
	Fanspecifications	480×153	480×153	480×153	500×148	500×148	500×148	500×148	500×148	500×148	450	500	500	550	600
	Volumen aeris (m³/h)	3500	3500	3500	5000	5000	5000×2	5000×2	5000×2	5000×2	4800×2	6550×2	6550×2	8600×2	11000×2
Specification of condenser coppe		Internalthread
Condensatio area (m)		11	11	19	30	40	50	60	80	100	80	100	120	150	200
Condenser tubus aeris		φ9(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(21×18.19)	φ9(21×18.19)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)
Alveus volumen (L)		3	3	3	5	5	8	8	10	10	10	10	12	15	20
Specificatio valvularum globi et fistulae aeris conflati		6 12 Threaded nexum portum			10 16 Threaded nexum portum		12 19 sequela nexum portum		16 28 Welding iunctio port		16 28 Welding iunctio port		19 35 Welding iunctio port		19 42 Portus connexio glutino
Commendatur frigus repono volumen ad frigus repono temperatura extensionem de 0~-18 C(m³)		10~15	10~15	15~20	20~50	40~60	50~100	60~ 120	80~ 140	100~150	80~ 140	100~150	120~200	150~300	200~400
Facultatem refrigerandum(W)	Evaporatio Temperature	Test conditionibus: Redi aeris temperies 20℃, subcooling gradus OK; Condensatio temperatus 40℃
	-40℃	621	726	1018	1414	1916	2419	2890	3569	4963	3569	4963	5655	6911	8551
	-30℃	1011	1182	1656	2302	3121	3939	4706	5811	8083	5811	8083	9208	11255	13925
	-25℃	1269	1484	2081	2890	3918	4945	5909	7296	10147	7296	10147	11560	14129	17481
	-15℃	1932	2258	3167	4399	5963	7527	8993	11104	15444	11104	15444	17595	21504	26606
	-10℃	2339	2735	3836	5327	7221	9115	10891	13448	18704	13448	18704	21308	26044	32223
	-5℃	2796	3268	4584	6367	8630	10894	13016	16072	22354	16072	22354	25467	31126	38511
Productum rationem longitudinis width×height (mm)		1000×440×575	1000×440×575	1000×440×575	1000×440×825	1000×440×825	1000×440×1225	1000×440×1225	1230×490×1350	1230×490×1350	1380×764× 1022	1344×764×922	1444×764× 1022	1444×894×1122	1644× 899× 1222
Productum rationem longitudinis width×height (mm)		1120×450×695	1120×450×695	1120×450×695	1120×450×955	1120×450×955	1120×450×1360	1120×450×1360	1350X490X1510	1350X490X1510	1580X880X1180	1530X880X1090	1645X900X1170	1645X1015X1290	1830X1200X1390
Packaging dimensiones: length×width×height(mm)		725×410	725×410	725×410	725×410	725×410	725×410	725×410	690×450	690×450	906×725	870×725	970×755	970x855	970x860
sonitus dB(A)		49.5	49.5	49.5	51	51	53	53	56	56	56	56	59	63	65
Net pondus (kg)		48	48	51	71	75	90	99	122	129	/	/	/	/	/
Crassum pondus (kg)		55	55	58	78	82	97	106	130	137	/	/	/	/	/
Throttling fabrica		Scelerisque expansion valvae (user provisum)
Suadeo utens ad scelerisque expansion valvae exemplum		TES24#	TES24#	TES24#	TES26#	TES26#	TGES6	TGES6	TGES9	TGES11	TGES9	TGES11	TGES13	TGES13	TGES13
Commendatur aer frigidior Thracam exemplum		HS401AJ01.8	HS401AJ01.8	HS401AJ01.8	HS401AJ02.5	HS402AJ03.3	HS402AJ04.4	HS402AJ04.9	HS403AJ07.2	HS404AJ08.7	HS403AJ07.2	HS404AJ08.7	HS404AJ10.1	HS504AJ12.1	HS504AJ15
Nota: Ut refrigerationem unitatis institutionis effectum conservet, commendatur uti fistulae aeris cum specificationibus non minoribus quam aeris frigidioris. Diameter variabilis tibiae aeneae adhiberi potest cum densante unitate connectens!

Unitas Exemplar		AOSZX-1.2HP	AOSZX-1.5HP	AOSZX-2HP	AOSZX-3HP	AOSZX-4HP	AOSZX-5HP	AOSZX-6H	AOSZX-8HP	AOSZX-10HP	AOSZX-8HP	AOSZX-10HP	AOSZX-12HP	AOSZX-15HP	AOSZX-20HP
Condensatum aeris exitus type		Aer latus exitus									Top aeris exitum
Evanescente Temperature / Refrigerant		-30℃~10℃/R404A
Virtus (V-Ph-Hz)		380~ 420/3/50 460/3/60													380/3/60
Compressor	Type	volumen compressor
	Capacitas(P)	1.2	1.5	2	3	4	5	6	8	10	8	10	12	15	20
	Exemplar	XR22B-A1-101	XR28B-A1-101	XR38B-A1-101	XR52B-A1-101	XR72B-A1-101	XR91B-A1-101	XR110B-A1-101	XR135B-A1-101	XR190B-A1-101	XR135B-A1-101	XR190B-A1-101	XR215B-A1-101	XR260B-A1-101	XR280B-A1-101
Condenser ferrum et motricium parametri	Brand	Orientisisisis									Haile
	Numerus	1	1	1	1	1	2	2	2	2	2	2	2	2	2
	Virtus (W)	60	60	60	130	130	130	130	130	130	230	420W	420W	550W	780W
	Fanspecifications	480×153	480×153	480×153	500×148	500×148	500×148	500×148	500×148	500×148	450	500	500	550	600
	Airvolume (m³/h)	3500	3500	3500	5000	5000	5000×2	5000×2	5000×2	5000×2	4800×2	6550×2	6550×2	8600×2	11000×2
Specificatio aeris condensatoris		Filum internum
Condensatio area (m)		11	11	19	30	40	50	60	80	100	80	100	120	150	200
Condenser tubus aeris		φ9(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(21×18.19)	φ9(21×18.19)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)	φ9(25×21.65)
Alveus volumen (L)		3	3	3	5	5	8	8	10	10	10	10	12	15	20
Specificatio valvularum globi et fistulae aeris conflati		6 12 Threaded nexum portum			10 16 Threaded nexum portum		12 19 sequela nexum portum		16 28 Welding iunctio port		16 28 Welding iunctio port		19 35 Welding iunctio port		19 42 Welding iunctio port
Commendatur frigus repono volumen ad frigus repono temperature range of 0 ~ -18 C (m)		10~15	10~15	15~20	20~50	40~60	50~100	60~ 120	80~ 140	100~150	80~ 140	100~150	120~200	150~300	200~400
facultatem refrigerandum	Evaporatio Temperature	Conditiones test: Redi temperies aeris 20℃, gradum subcoolescentis OK; Condensatio temperatus 40℃
	-30℃	1022	1190	1642	2236	3286	3850	4795	5904	8262	5904	8262	9415	11354	12096
	-25℃	1293	1505	2078	2829	4158	4886	6068	7471	10455	7471	10455	11914	14367	15307
	-15℃	1991	2317	3199	4355	6401	7598	9340	11501	16094	11501	16094	18340	22117	23563
	-10℃	2432	2831	3908	5321	7821	9330	11412	14052	19664	14052	19664	22408	27023	28789
	-5℃	2949	3433	4739	6453	9484	11357	13838	17039	23845	17039	23845	27172	32768	34910
	0℃	3556	4140	5714	7781	11436	13715	16687	20547	28753	20547	28753	32765	39513	42096
	10℃	5122	5963	8231	11209	16474	19596	24038	29596	41420	29596	41420	47200	56920	60642
Productum rationem longitudinis width×height (mm)		1000×440×575	1000×440×575	1000×440×57	1000×440×8	1000×440×8	1000×440×122	1000×440×122	1230×490×135	1230×490×135	1380×764×102	1344×764×922	1444×764×102	1444×894×112	1644× 899× 1222
Productum rationem longitudinis width×height (mm)		1120×450×695	1120×450×695	1120×450×695	1120×450×955	1120×450×955	1120×450×1360	1120×450×1360	1350×490×1510	1350×490×1510	1580×880×1180	1530×880×1090	1645×900× 1170	1645× 1015× 129	1830×1200×1390
Packaging dimensiones: length×width×height(mm)		725×410	725×410	725×410	725×410	725×410	725×410	725×410	690×450	690×450	906×725	870×725	970×755	970x855	970×860
sonitus dB(A)		49.5	49.5	49.5	51	51	53	53	56	56	56	56	59	63	65
Net pondus (kg)		48	48	51	71	75	90	99	122	129	/	/	/	/	/
Crassum pondus (kg)		55	55	58	78	82	97	106	130	137	/	/	/	/	/
Throttling fabrica		Scelerisque expansion valvae (user provisum)
Suadeo utens ad scelerisque expansion valvae exemplum		TES24#	TES24#	TES24#	TES26#	TES26#	TGES6	TGES6	TGES9	TGES11	TGES9	TGES11	TGES13	TGES13	TGES13
Commendatur aer frigidior Thracam exemplum		HS401AD02.5	HS401AD02.5	HS401AD02.5	HS401AD03.4	HS402AD04.2	HS402AD06.0	HS402AD06.6	HS403AD09.7	HS404AD11.9	HS403AD09.7	HS404AD11.9	HS404AD13.5	HS504AD16.5	HS504AD20.8
Nota: Ut refrigerationem unitatis institutionis effectum conservet, commendatur uti fistulae aeris cum specificationibus non minoribus quam aeris frigidioris. Diameter variabilis fistulae aeneae adhiberi potest cum connexione ad unitatis densationem!
