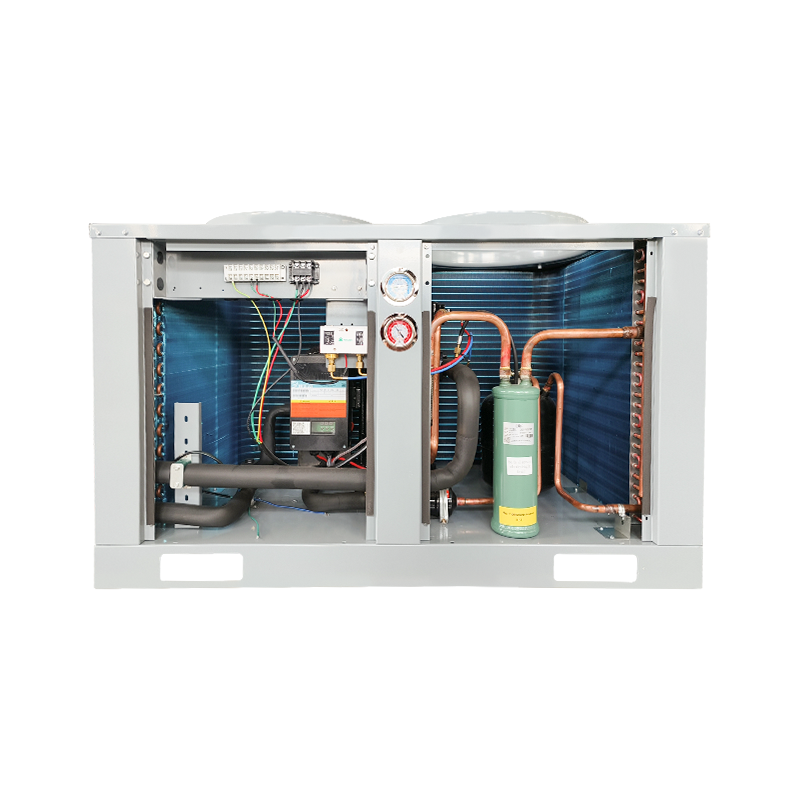

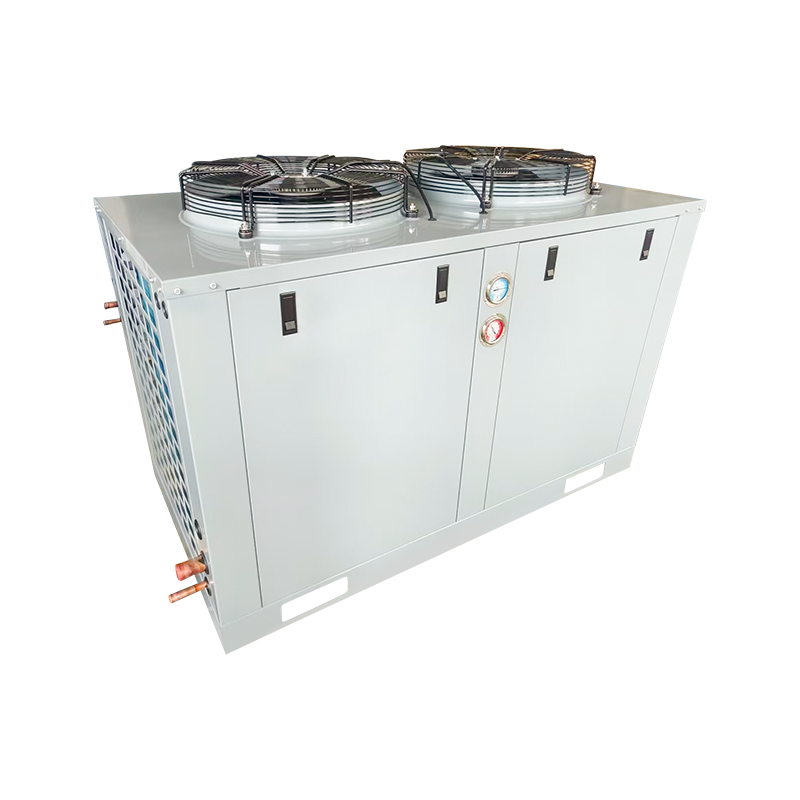

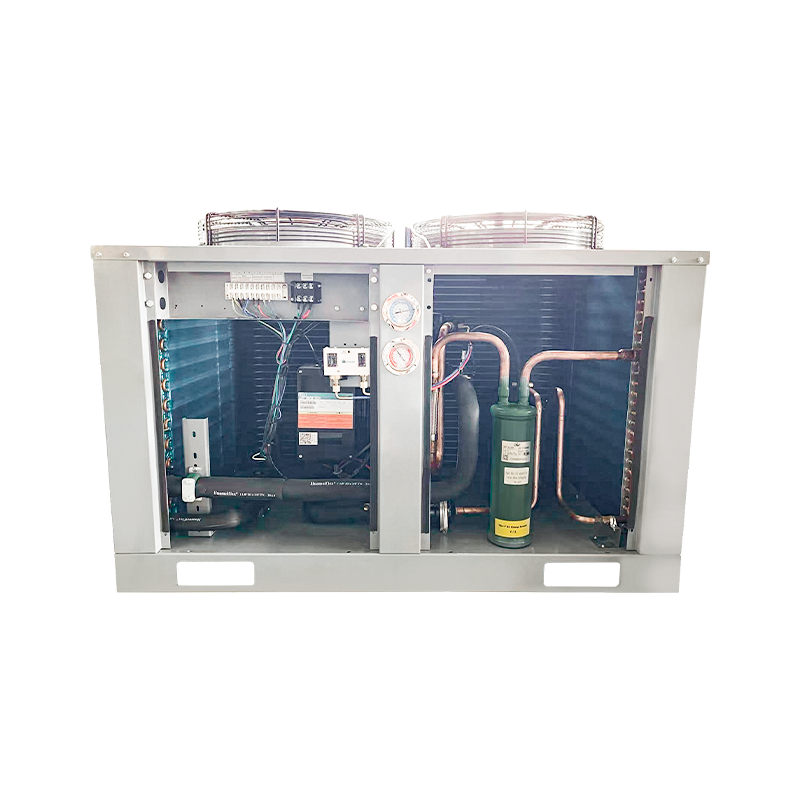

Top Air Outlet Condensing Unit (Utens Panasonic Compressor) 8-40HP

Our Top Air Outlet Condensing Unit (Using Compressore Panasonic) 8-40HP- machinator ad apicem perficiendi et constantiam, potens a mundo inclito volumine Compressore Panasonic. Distinctio ad latera aeris destinata, haec unitas potentem liberat, refrigerationem efficiens per amplis ambitus postulandi. Utrum in profundo frigore operandi (-30°C ad -5°C) vel mediae temperaturae (-15°C ad 10°C) applicationes, haec unitas densatio incommodis tuis necessitatibus adaptat - ex horreis frigidis et cibariorum processus facultates ad supermarketas et systema refrigerandi industriae. Compressor Panasonic operationem ultra quietam efficit, superior energiae efficientiam, et extensa opera vitae propter robustum, humilemque vibrationis librum technologiam efficit. Cum consilio laterali demissione pactus, conservat pretiosam institutionem spatii dum optimizing airflow ad citius, magis uniformem refrigerationem. Aedificavit condiciones duras sustinere et ad minimam sustentationem machinata, haec unitas tempus minuit et impensas prendit — pacem mentis et maximam ROI dans tibi. Utrum ratio exsistens auges vel novam refrigerationem infrastructuram instituens, unitas nostra Panasonic-powered concretior est dolor, probatio futuri electio in negotiis quae exigunt effectum, vetustatem, et efficientiam..

Unitas Model		AOSZS-3HP	AOSZS-4HP	AOSZS-3HP	AOSZS-4HP	AOSZS-5HP	AOSZS-6HP	AOSZS-8HP	AOSZS-10HP	AOSZS-12HP
Condensata aeris exitus genus		Aer latus exitus							Top aeris exitum
Evaporans Temperature / Refrigerant		-30℃~5℃/R22
Virtus (V-Ph-Hz)		50Hz,220V		50Hz,380V
Compressor	Type	Panasonic volumen compressor
	Capacitas(P)	3	4	3	4	5	6	8	10	12
	Model	C-SBR120H15Q	C-SB145H15Q	C-SBR120H38Q	C-SB145H38Q	C-SB180H38Q	C-SB205H38Q	C-SC603H38H	C-SC753H38H	C-SC903H38H
Condenser ferrum et motricium parametri	Brand	Orientisis							Haile
	Numerus	1	1	1	1	2	2	2	2	2
	Virtus (W)	130	130	130	130	130	130	130	2×420	2×420
	Fanspecifications	500×148	500×148	500×148	500×148	500×148	500×148	500×148	500	500
	Volumen aeris (m³/h)	5000	5000	5000	5000	5000×2	5000×2	5000×2	6550×2	6550×2
Specificatio aeris condensatoris		Filum internum
Condensatio area (m)		30	40	30	40	50	60	80	100	200
Condenser tubus aeris		φ7(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(21×18.19)	φ9(25×21.65)	φ9(25×21.65)
Alveus volubilis (L)		5	5	5	5	8	8	10	10	12
Specificatio valvularum globi et fistulae aeris conflati		10 16 Threaded nexum portum		10 16 Threaded nexum portum		12 19 sequela nexum portum		16 28 Welding iunctio port
Commendatur frigus repono volumen ad frigus repono temperatus range of 0 ~ -18 C (m³		20~50	40~60	20~50	40~60	50~100	60~ 120	80~ 140	100~150	120~200
Facultatem refrigerandi (W)	Evaporatio Temperature	Conditiones test: Redi temperies aeris 20℃, gradum subcoolescentis OK; Condensatio temperatus 40℃
	-30℃	2610	2810	2610	2810	3700	3910	4520	5100	6020
	-15℃	5260	5560	5260	5560	7250	8060	9310	12320	13960
	-5℃	8370	8870	8370	8870	11260	12890	14110	15660	17020
Productum rationem longitudinis width×height (mm)		1000×440×825	1000×440×825	1000×440×825	1000×440×825	1000×440×1225	1000×440×1225	1230×490×1350	1344×764×922	1444×764× 1022
Packaging dimensiones: length×width×height(mm)		1120×450×955	1120×450×955	1120×450×955	1120×450×955	1120×450×1360	1120×450×1360	1350×490×1510	1530×880×1090	1645X900×1170
Installation longitudinis latitudo (mm)		725×410	725×410	725×410	725×410	725×410	725×410	690×450	870×725	970×755
sonitus dB(A)		51	51	51	51	53	53	56	56	59
Net pondus (kg)		71	75	71	75	90	99	122	/	/
Crassum pondus (kg)		78	82	78	82	97	106	130	/	/
Throttling fabrica		Scelerisque expansion valvae (user provisum)
Suadeo utens ad scelerisque expansion valvae exemplum		TEX23#	TEX24#	TEX23#	TEX24#	TEX26#	TEX26#	TGEX7.5	TGEX9	TGEX11
Commendatur aer frigidior Thracam exemplum		HS401AD03.4	HS402AD04.2	HS401AD03.4	HS402AD04.2	HS402AD06.0	HS402AD06.6	HS403AD09.7	HS404AD11.9	HS404AD13.5
Nota: Ad effectum unitatis institutionis refrigerandum curare, commendatur uti fistulae aeris cum specificationibus non minoribus quam aeris frigidioris. Diameter variabilis fistulae aeneae adhiberi potest cum densante unitate connectens!

Unitas Model		AOSGS-3HP	AOSGS-4HP	AOSGS-3HP	AOSGS-4HP	AOSGS-5HP	AOSGS-6HP	AOSGS-8HP	AOSGS-10HP	AOSGS-12HP
Condensata aeris exitus genus		Aer latus exitus							Top aeris exitum
Evaporans Temperature / Refrigerant		-15℃~10℃/R22
Virtus (V-Ph-Hz)		50Hz,220V		50Hz,380V
Compressor	Type	Panasonic volumen compressor
	Capacitas(P)	3	4	3	4	5	6	8	10	12
	Model	C-SBR115H15A	C-SB145H15A	C-SBR263H8A	C-SB303H8A	C-SB373H8A	C-SB453H8A	C-SC603H8H	C-SC753H8H	C-SC903H8H
Condenser ferrum et motricium parametri	Brand	Orientisis							Haile
	Numerus	1	1	1	1	2	2	2	2	2
	Virtus (W)	130	130	130	130	130	130	130	2×420	2×420
	Fanspecifications	500×148	500×148	500×148	500×148	500×148	500×148	500×148	500	500
	Volumen (m³/h)	5000	5000	5000	5000	5000×2	5000×2	5000×2	6550×2	6550×2
Specificatio aeris condensatoris		Filum internum
Condensatio area (m)		30	40	30	40	50	60	80	100	200
Condenser tubus aeris		φ7(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(25×21.65)	φ9(25×21.65)	φ7(21×18.19)	φ9(25×21.65)	φ9(25×21.65)
Alveus volumen (L)		5	5	5	5	8	8	10	10	12
Specificatio valvularum globi et fistulae aeris conflati		10 16 Threaded nexum portum		10 16 Secutum et est		12 19 sequela nexum portum		16 28 Welding iunctio port
Commendatur frigus repono volumen ad frigus repono temperatus range ex 0~~ XVIII C (m³)		20~50	40~60	20~50	40~60	50~100	60~ 120	80~ 140	100~150	120~200
Facultatem refrigerandi (W)	Evaporatio Temperature	Conditiones test: Redi temperies aeris 20℃, gradum subcoolescentis OK; Condensatio temperatus 40℃
	-15℃	5126	5740	5126	5740	7150	8370	9315	12310	13960
	0℃	7095	10130	7095	10130	10330	12540	22130	25640	30250
	10℃	8370	12260	8370	12260	14950	18790	33210	38050	44890
Productum rationem longitudinis width×height (mm)		1000×440×825	1000×440×825	1000×440×825	1000×440×825	1000×440×1225	1000×440×1225	1230×490×1350	1344×764×922	1444×764× 1022
Productum rationem longitudinis width×height (mm)		1120x450×955	1120×450×955	1120×450×955	1120×450×955	1120×450×1360	1120x450x1360	1350X490X1510	1530X880X1090	1645×900× 1170
Packaging dimensiones: length×width×height(mm)		725×410	725×410	725×410	725×410	725×410	725×410	690×450	870×725	970×755
Installation longitudinis latitudo (mm)		51	51	51	51	53	53	56	56	59
Net pondus (kg)		71	75	71	75	90	99	122	/	/
Crassum pondus (kg)		78	82	78	82	97	106	130	/	/
Throttling fabrica		Scelerisque expansion valvae (user provisum)
Suadeo utens ad scelerisque expansion valvae exemplum		TEX23#	TEX24#	TEX23#	TEX24#	TEX26#	TEX26#	TGEX7.5	TGEX9	TGEX11
Commendatur aer frigidior Thracam exemplum		HS401AD03.4	HS402AD04.2	HS401AD03.4	HS402AD04.2	HS402AD06.0	HS402AD06.6	HS403AD09.7	HS404AD11.9	HS404AD13.5
Nota: Ut refrigerationem unitatis institutionis effectum conservet, commendatur uti fistulae aeris cum specificationibus non minoribus quam aeris frigidioris. Diameter variabilis fistulae aeneae adhiberi potest cum connexione ad unitatis densationem!
