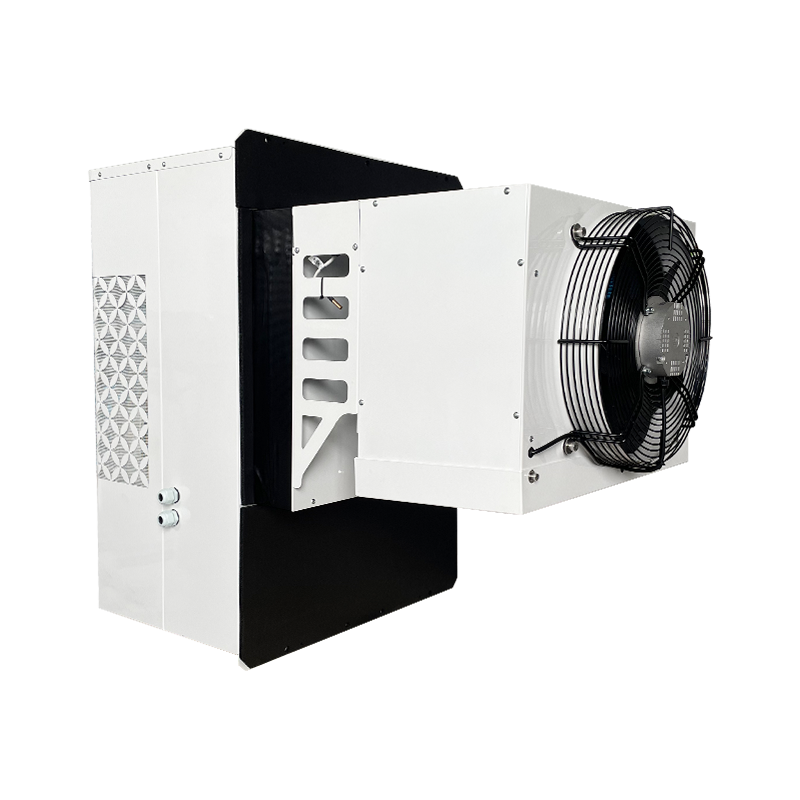

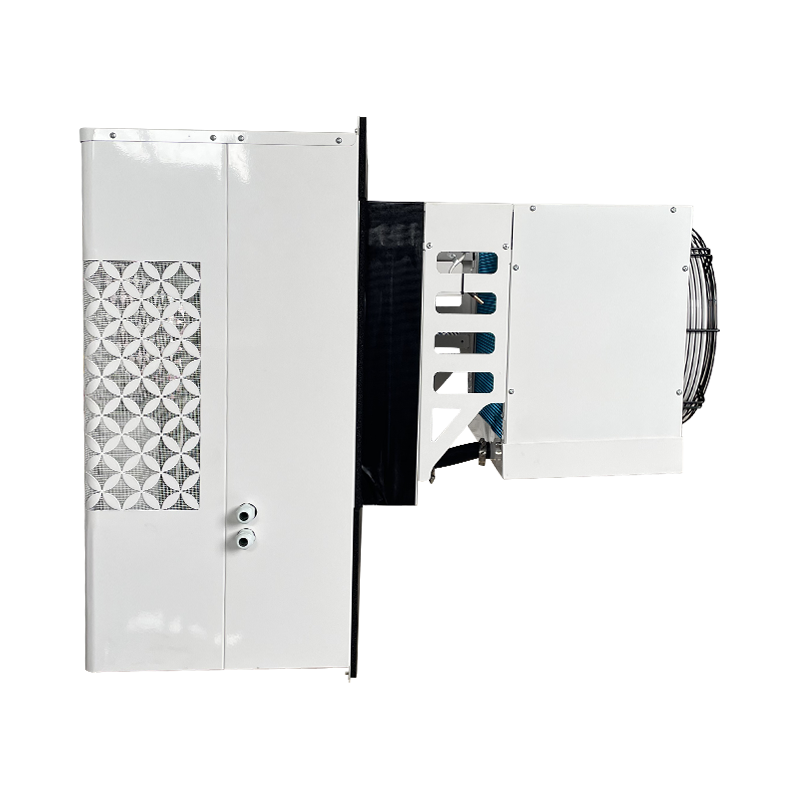

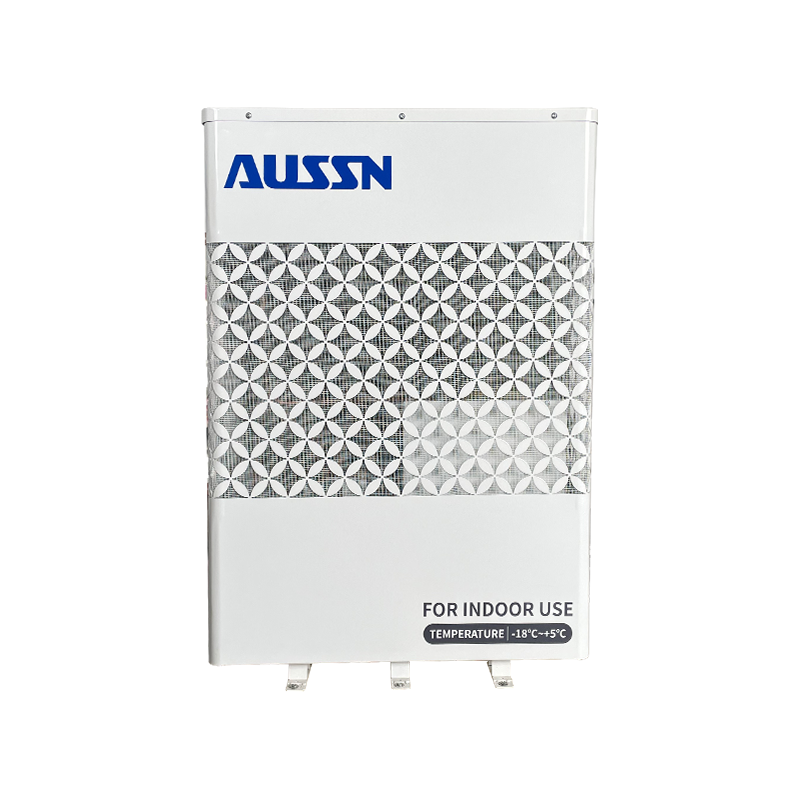

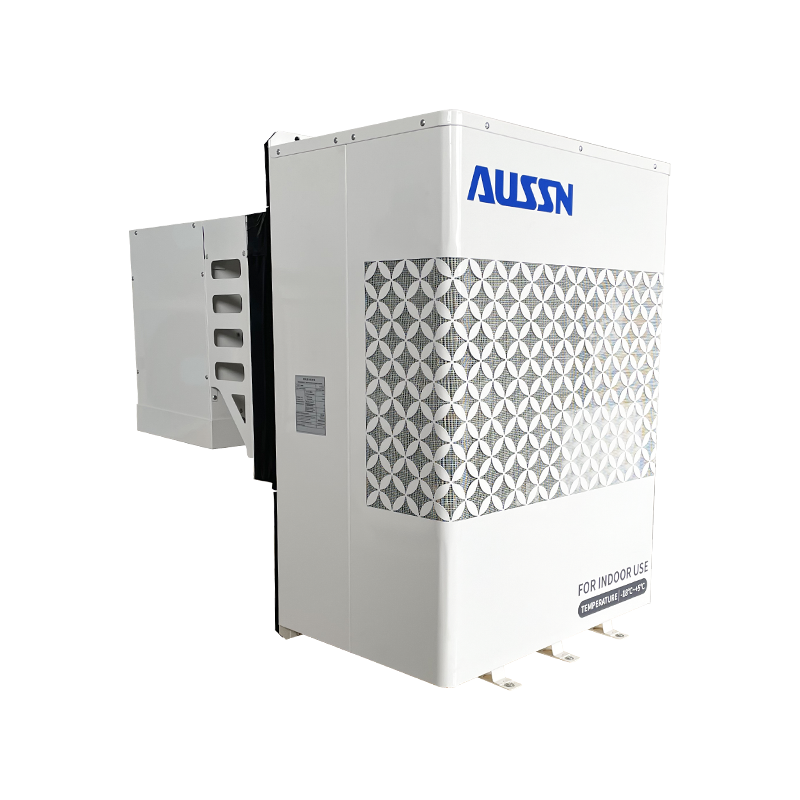

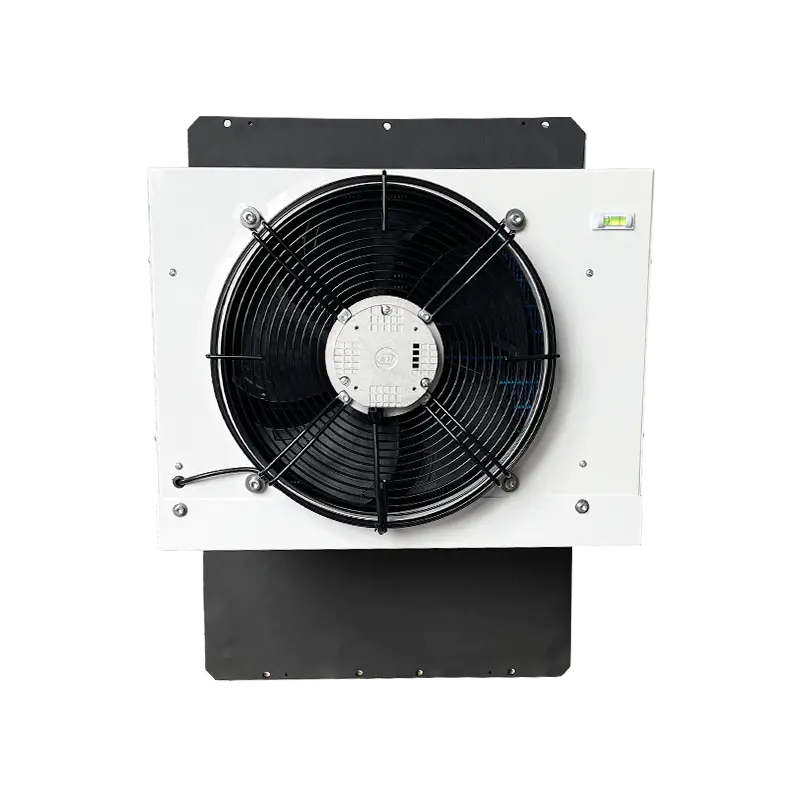

Insecta Integra Unit Monoblock Condensing Unit for sale
| Exemplar | YC-010A | YC-015A | YC-020A | YC-030A | YC-040A | ||
| Potentia copia | 220V-240V 50Hz | ||||||
| Condensatio temperatus 45℃ Evaporatio temperatus -2℃ | Facultatem refrigerandi (W) | 2265 | 3400 | 4575 | 6510 | 9130 | |
| Capacitas(W) | 1000 | 1500 | 1885 | 2510 | 3635 | ||
| Suggessit min volumen frigoris reposita (m³) | 11 | 15 | 25 | 70 | 80 | ||
| Suggessit max volumen frigoris repono(m³ | 23 | 35 | 50 | 100 | 120 | ||
| Condensatio temperatus 45℃ Evaporatio temperatus-8℃ | Facultatem refrigerandi (W) | 1805 | 2705 | 3580 | 5135 | 7200 | |
| Capacitas(W) | 950 | 1427 | 1800 | 2390 | 3465 | ||
| Suggessit min volumen frigoris reposita (m³) | 9 | 13 | 20 | 45 | 50 | ||
| Suggessit max volumen frigoris reposita (m³) | 20 | 30 | 45 | 80 | 90 | ||
| Condensatio temperatus 45℃ Evaporatio temperatus -15℃ | Facultatem refrigerandi (W) | 1350 | 2025 | 2700 | 3845 | 5390 | |
| Capacitas(W) | 895 | 1340 | 1700 | 2250 | 3255 | ||
| Suggessit min volumen frigoris reposita (m³) | 5 | 10 | 16 | 20 | 25 | ||
| Suggessit max volumen frigoris reposita (m³) | 11 | 20 | 30 | 40 | 50 | ||
| Condensatio temperatus 45℃ Evaporatio temperatus -25℃ | Facultatem refrigerandi (W) | 865 | 1300 | 1740 | 2480 | 3475 | |
| Capacitas(W) | 810 | 1215 | 1530 | 2040 | 2950 | ||
| Suggessit min volumen frigoris reposita (m³) | 4 | 5 | 10 | 15 | 20 | ||
| Suggessit max volumen frigoris reposita (m³) | 9 | 11 | 20 | 30 | 40 | ||
| Defrosting modum | Hot fluorine defrosting | ||||||
| Compressor | HP | 1 | 1.5 | 2 | 3 | 4 | |
| Type | volumen Compressor | ||||||
| Refrigerant / crimen volumen | 0.9 | 1.2 | 1.5 | 2.5 | 2.8 | ||
| Productum speciem TRACTUS | C1 | C2 | C3 | ||||
| Product amplitudo | 1050X530X905 | 1050X620X905 | 1286X803X990 | ||||
| Packaging magnitudine | 1140X615X1045 | 1140X705X1045 | 1375X890X1130 | ||||
| Magnitudo ostium tabulata in frigore repono | 475*500 | 585*500 | 770*630 | ||||
| Net pondus | 90 | 110 | 150 | ||||
| Dimension drawing | |||||
| L | W | H | WK | HK | |
| C1 | 1050 | 530 | 905 | 475 | 500 |
| C2 | 1050 | 620 | 905 | 585 | 500 |
| C3 | 1286 | 803 | 990 | 770 | 630 |
